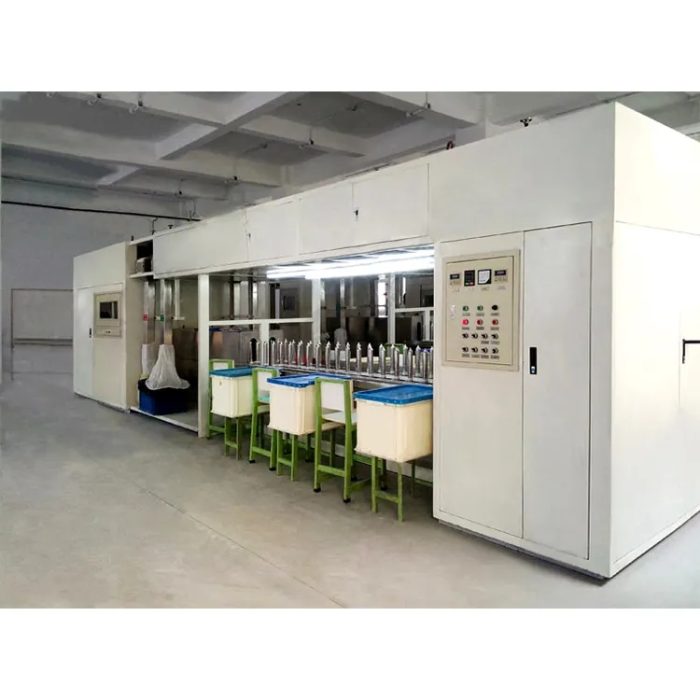

Automatic Latex Condom Making Machine
1. Automatic design completely according to the chemical capability of raw material and candom molding craftwork, compact facility flow. 2. According to the theory of hot air moving up, the oven adopts tunnel drying way to reclaim the hot wind by circulating mixture that gets the best effect at the minimum power. 3. Utilize the effective heating space and the hot-wind circulation theory to reduce the cost; multi PID intelligent controlled temperature systems make the error cannot exceed ±5, even heated and good brightness. 4. High output, special union joint design, easy to replace mould, picks up the circular speed. 5. Automatic vibrant drip or uniform latex system makes glove excellent and uniform thickness. 6. Adopt the special fire-resistant chain; pick up yield speed, advanced output.
Production Line Size
|
Length 65m×Width 3m×Height 4.5m or Customized
|
Production Capacity
|
350,000 pcs/24h or Customized
|
Number of Installed Molds
|
5400pcs
|
Chain Length of Production Line
|
215M
|
Mold Spacing
|
80mm
|
Chain Speed
|
0-10m/min
|
Voltage
|
380V,50HZ
|
Drive Motor Power
|
3*2.2Kw
|
Power Consumption
|
70KW
|
Heat Energy Consumption (steam)
|
1T/h
|
Water Consumption
|
6T/h
|
Soft Water Consumption
|
10T/24h
|
