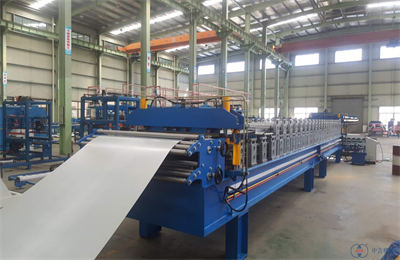

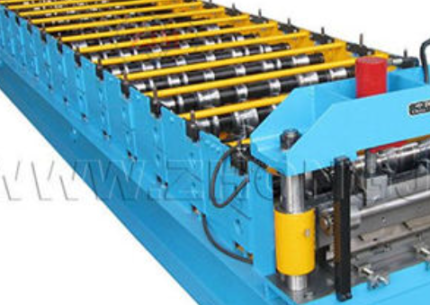

floor deck roll forming machine

Process flow:
Uncoiling → Guided feeding → Plate lubrication → Roll forming → Cut to length → Finished plate
Main structural form:
1. The uncoiler is composed of a frame and two cone heads. The frame is welded with profiles, steel plates and shot blasted.
2. Hoist the steel coil inside the loading rack, screw in the two cone jacks, press both sides of the coil tightly, and then release the lifting machine.
3. During normal operation, the board is manually introduced into the roller table formed by the main machine, and then the board is passively released with the work of the main machine, and the board is tightened under its own action.
Main feature:
1. This unit is composed of 4T manual feeding device, leveling device, transmission device, forming roller table and main engine (including guiding platform), cutting device after forming, hydraulic system, electric control system, finished product supporting device, etc.
2. Loading and uncoiling (put the steel coil into the inner support type opening frame and tighten it tightly), the two-roller clamp feeds the plate to calibrate and correctly import, level, roll forming, cut after forming, and the finished product is supported and discharged.
Technical parameter:
