Application

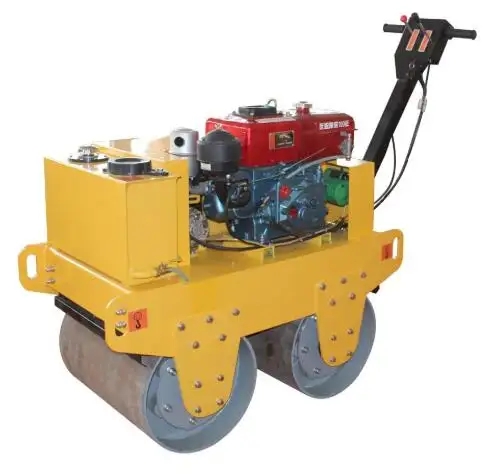

The compact roller is suitable for compacting asphalt pavement, sidewalks, bridges, parking lots, sports grounds and other narrow compaction operations. It is an ideal equipment for roads and municipal departments to maintain and repair trenches, streets and square strips.
Featurers
1. The working radius is small, and it can work in a narrow area, which is suitable for trench backfilling;
2, superior performance, easy to start;
3, using hydraulic actuator, stepless speed change, convenient commutation;
4. The handrail adopts an adjusting device, which is suitable for workers of different heights and is convenient to transport;
5, the surface of plastic spray, rust and corrosion resistance.
Standard
International Standard;
Chinese Standard;
Other standards: according to customer’s special request.
Technical Parameters
| Model | Y-600S | Y-600D | Y-850 | Y-880 |
| Engine power | 5.5(4.0)HP/KW 3.8(2.8)HP/KW | 9.0(6.6)HP/KW 5.5(4.0)HP/KW | 6.5/4.8( Hp/kw) | 6.6kw |
| Engine | GX160 gasoline engine/Diesel engine | GX270 gasoline engine/Changfa 178FE diesel engine | Changfa diesel engine 180FE | Changfa diesel engine 186FE |
| Walking speed | 2.4Km/H | 0~4Km/H | 0-4km/h | 0-5km/h |
| Drive mode | Hydraulic drive | Hydraulic drive | Hydraulic drive | Hydraulic drive |
| Steel wheel size | 426*600mm | 426*600mm | 580*700mm/
500*700mm |
800*850mm/
740*850mm |
| Exciting force | 15KN | 25KN | 30KN | 50KN |
| Vibration frequency | 70HZ | 70HZ | 70HZ | 70HZ |
| Gradeability | 25% | 30% | 30% | 30% |
| Working tonnage | 1.2tons/1.5tons | 2tons | 2.5tons | 3.5tons |
| Weight | 330Kg | 550Kg | 750Kg | 1000Kg |
| Package dimensions | 1070*980*1200 mm | 1310*1200*1220 mm | 1600*900*1200mm | 2100*1000*1650 mm |
