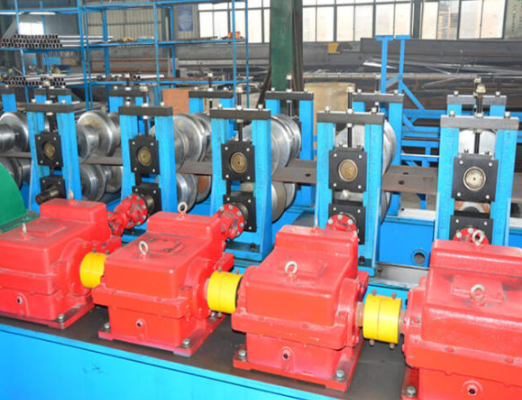

Features of Three waves highway guardrail machine
-
Three waves highway guardrail machine can produce both 2 waves and 3 waves guardrail without changing. Guardrails are widely used for highway and road and bridges.
-
Process Flow of Three waves highway guardrail machine
-
Uncoiler — feeding— leveling—punching—roll forming— cutting — output
|
Items |
Specifications |
|
Max Material Thickness |
2-4.0mm |
|
Hydraulic Uncoiler |
5T |
|
Leveler |
7Rollers |
|
Hydraulic Power |
15 kw |
|
Punching |
Hydraulic pre-punching |
|
Mould Material |
Cr12Mov |
|
Rolling Speed |
10m/min |
|
Roller Stations |
18 stations |
|
Roller Material |
Gcr15, quench treatment hardness 55-60 |
|
Shaft |
45#steel |
|
Shaft diameter |
95mm |
|
Main Motor Power |
55 kw |
|
Side structure |
Memory archway |
|
Transmission |
Gearbox |
|
Hydraulic Power |
15 kw |
|
Blade Material |
Cr12Mov |
|
Tolerance |
+-1.5mm |
|
Electric Source |
380V, 50HZ, |
|
PLC Control System |
Panasonic |
|
No. |
Name |
Qty |
|
1 |
Hydraulic uncoiler |
1 |
|
2 |
Leveling |
1 |
|
3 |
Hydraulic Punching |
1 |
|
4 |
Main Roll Forming Machine |
1 |
|
5 |
PLC Control Box |
1 |
|
6 |
Hydraulic Pump Station |
1 |
|
7 |
Output Table |
2 |
