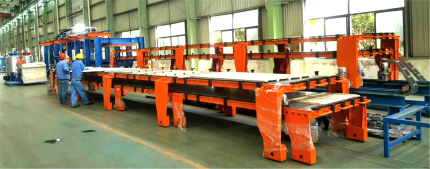

Main Features：
1. Automatic wire feeding system, automatic wire cutting system.
2. Advanced pre-piercing system to reduce welding leakage.
3. It is used to weld 3 structural boards with cross-inclined steel wires between the upper and lower flat meshes and the EPS or rock wool fixing boards.
Technical parameters：
| Product Dimension | (L×W×T）2450-6000mm×1200mm（EPS or rock wool thickness：50-300mm） |
| Production capacity | 6.5 s/step or 60 m2/h |
| Welding intensity | pull off force for each spot ≥680 |
| 3D Panel Diagonal Error | ≤10mm |
| 3D Panel Lateral Bend | ≤L/650MM |
| 3D Panel Welding Defect Rate | ≤8% |
| Steel Wire Diameter | φ2.0mm-φ3.0mm |
| Main Machine Size | (L×W×T)16000mm×1850mm×2650mm |
| Weight | 8000Kg |
| Power | 380V/50HZ/100KVA |
| With pre-inserting system | |
| Main machine 1 set，wire roller 30 sets，electrical box 1 pc | |
